MRR Wireless Temp Monitor Features
- Maximum management 100 nodes MRS sensor
- Anti-tampering: 64 frequency channel hopping
- Industry aluminum alloy shell, passive cooling for 7*24 hours working
- 12Vdc power supply
Technology of Electrical Automatic

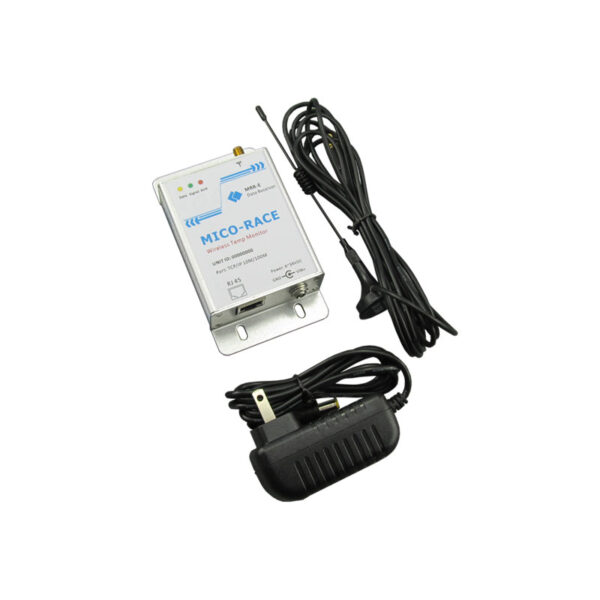

Mico-Race MRR Wireless Temp Monitor
Mico-Race MRR Wireless Temp Monitor
MRR Wireless Temp Monitor is an MRR data receiver and Port Router for the Mico-Race. It is used as a core gateway of the MICO-RACE wireless system, providing TCP/IP or RS232/485 series port to connect the host device, so that the user can collect all the data transmitted from MRS remote sensor.
MRR Wireless Temp Monitor is an MRR data receiver and Port Router for the Mico-Race. It is used as a core gateway of the MICO-RACE wireless system, providing TCP/IP or RS232/485 series port to connect the host device, so that the user can collect all the data transmitted from MRS remote sensor.
Specification
| Power Supply | 9~30VDC Consumption < 1W |
| Radio frequency | 434MHz / 460Mhz / 869Mhz optional |
| Launch power | Adjustable:7dbm~16dbm (1mW~50mW) 24mA@10dbm/10mW, 60mA@17dbm/50mW |
| Transmit distance (test in 3dbi Omni directional antenna @9.6kbps) |
Outdoor 800m@10dbm/10mW; 2km@17dbm/50mW Indoors with walls 2X35CM reinforced wall layer@10dbm/10mW 5X35CM reinforced wall layer@17dbm/50mW |
| Wireless transmit rate | 2.4~256 kbps (default 20kbps) |
| Channel | 64 groups, free to change groups setting via configuration software |
Models
| MRR-E | Ethernet TCP/IP port, DHCP function Provide MTD software for test and WIN PC use |

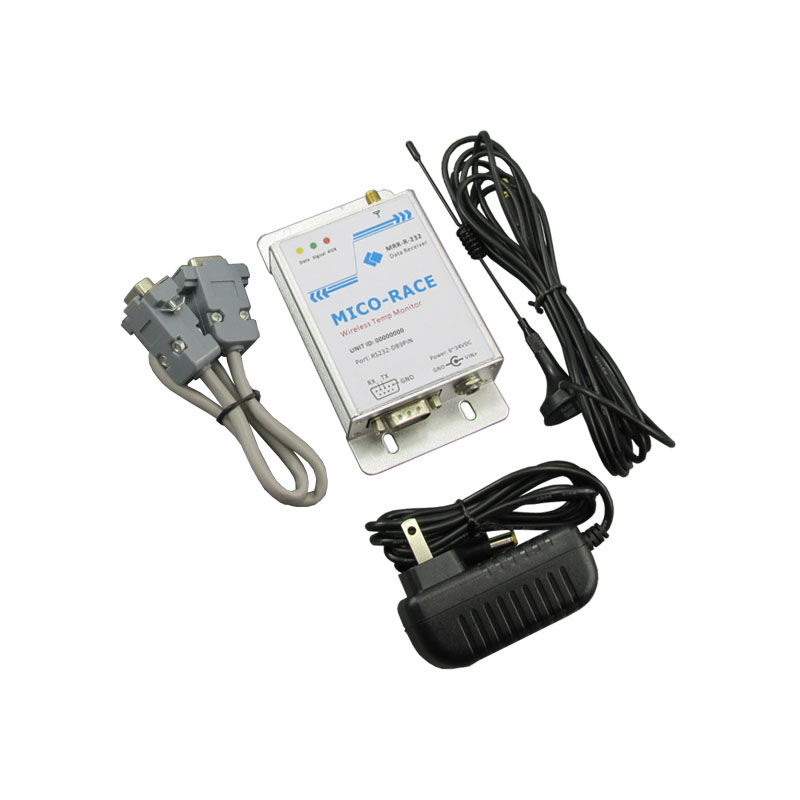

| MRR-R-2 | RS232 series port Provide female to female DB9 pin connector to connect host |

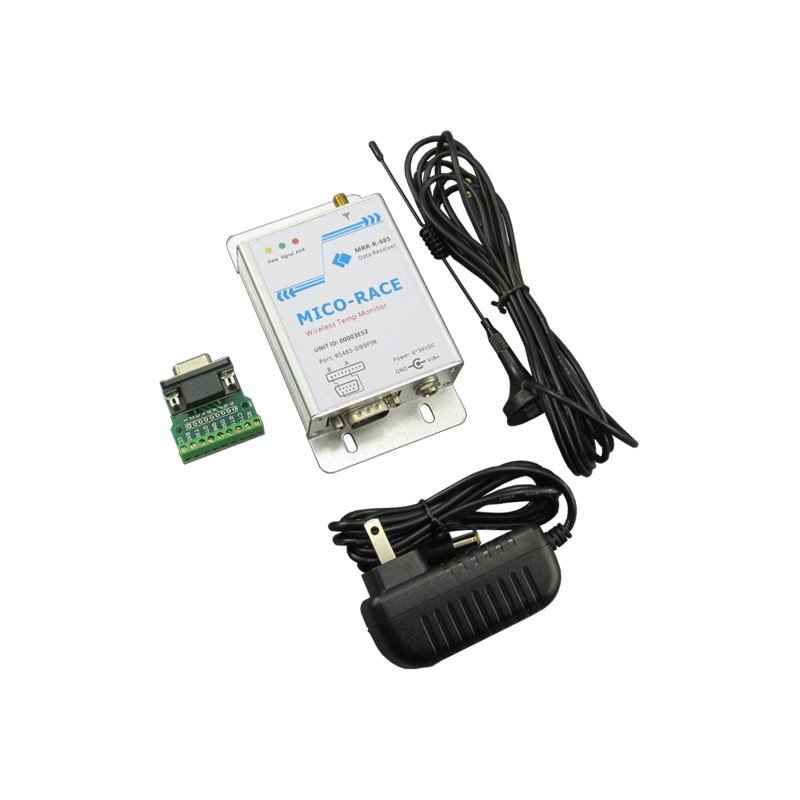

| MRR-R-4 | RS485 series port Provide DB9 pin to terminal adapter |
| MRR-SR | Signal repeater for large area network build |
