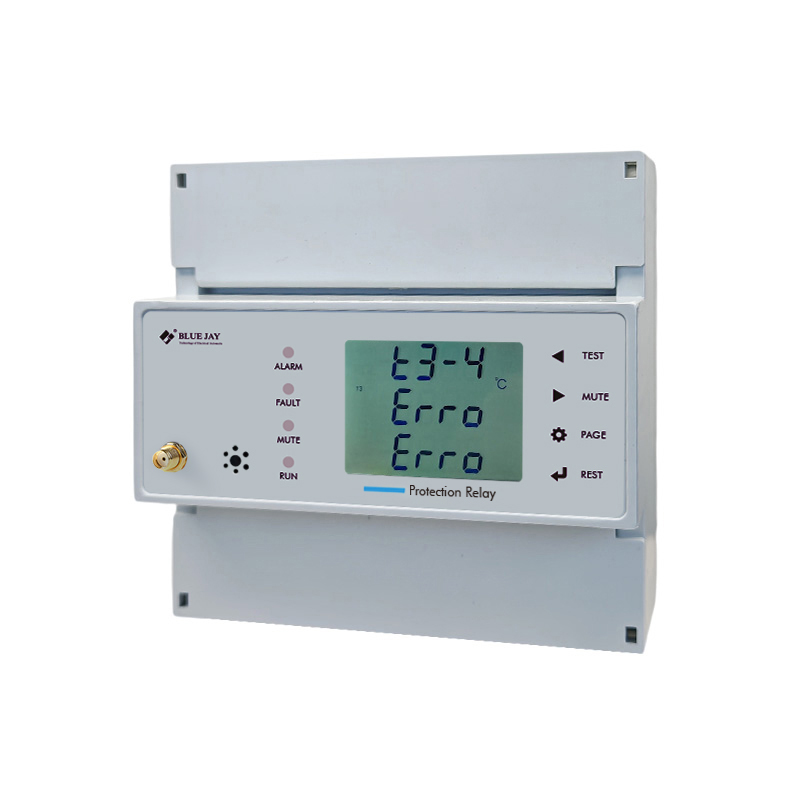

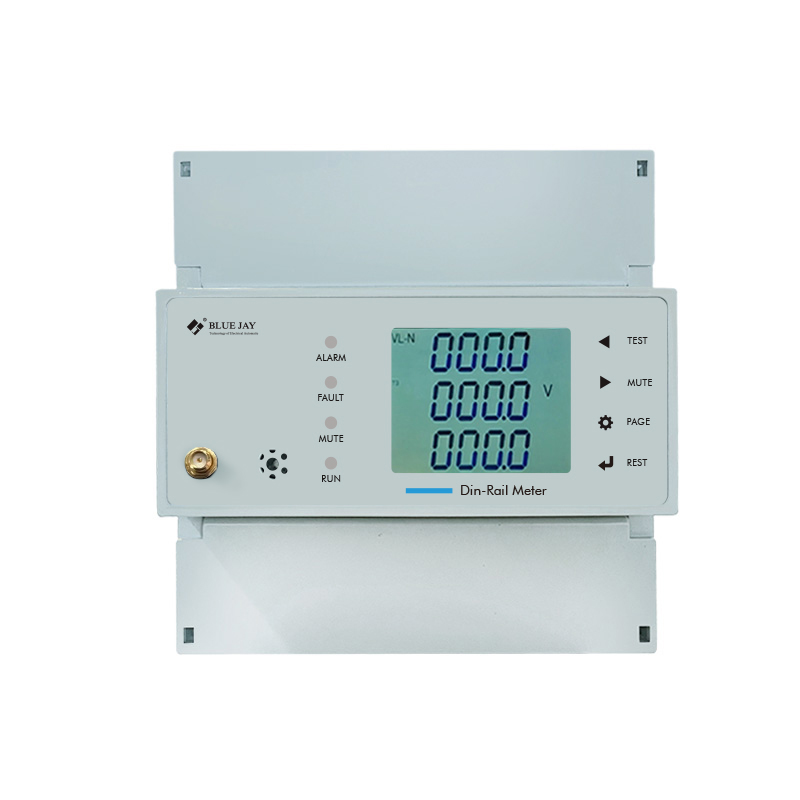

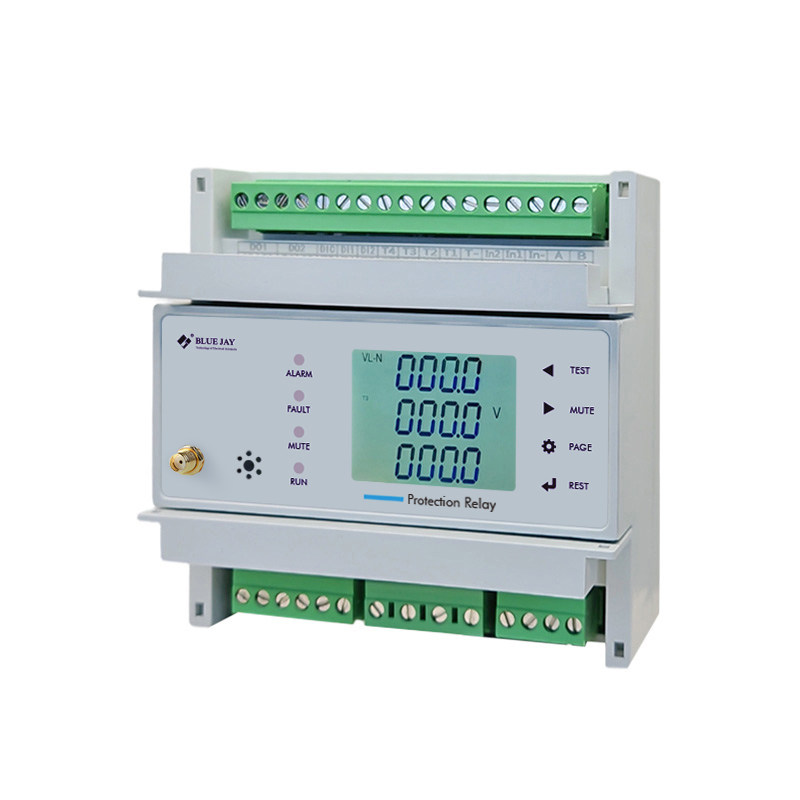

The DEM-6MC multi-function wifi energy meter features high-accuracy power metering and monitoring, ideal for prepaid management systems in residential, industrial, and commercial applications. It integrates a class 0.2 precision measurement module for real-time acquisition of three-phase voltage, current, power, energy, current unbalance, and harmonic data. Measurement data is transmitted via RS485 or wireless modules (WIFI, 4G, Zigbee, LoRa, IoT) for centralized remote monitoring and management.
The DEM-6MC multi-function wifi energy meter features high-accuracy power metering and monitoring, ideal for prepaid management systems in residential, industrial, and commercial applications. It integrates a class 0.2 precision measurement module for real-time acquisition of three-phase voltage, current, power, energy, current unbalance, and harmonic data. Measurement data is transmitted via RS485 or wireless modules (WIFI, 4G, Zigbee, LoRa, IoT) for centralized remote monitoring and management.
| Working power | |

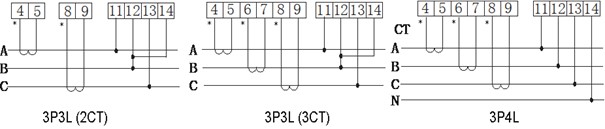

| Power grid mode | 1P2W, 3P3W, 3P4W |
| Power supply | AC/DC 85-265V, 45-65Hz |
| Consumption | ≤5VA |
| Data refresh frequency | 1S |
| Voltage input | |
| Rate value | 100V/220V/380V |
| Overload | 1.2Un |
| Power consumption | <0.2VA |
| Impedance | 0.5MΩ |
| Current input | |
| Rate value | AC 1A/5A (please specify when ordering) |
| Overload | Measurement: 1.2 times Instantaneous: 10 times/3s |
| Power consumption | <0.1VA |
| Impedance | <20MΩ |
| Accuracy | |
| Voltage, current | 0.2 |
| Power | 0.2 |
| Harmonics | Uh>2%: 5%Uh; Uh<=2%: 0.1%Un |
| Residual current | 1% |
| Temperature | ±2°C |
| Frequency | ±0.02Hz |
| Active energy | 0.5S |
| I/O capacity | |
| DI | 2-4 channels, dry contact, Ri<500Ω turns on, Ri>100kΩ turns off |
| DO | 2 channels, Relay contact capacity: 5A@250VAC; 5A@30VDC |
| Communication | RS485, Modbus-RTU or Ethernet, Modbus-TCP/IP
Optional Wireless modules (WIFI, 4G, Zigbee, LoRa, IoT) |
| Pulse output | 1 channel, pulse width 80ms, photoelectric isolation |
| Safety | |
| Pollution degree | 2 |
| Overvoltage category | CATIII@277/480VAC |
| Insulation capability | 2kV AC RMS 1 minute, between input / output / case / power supply |
| EMC test | |
| Discharge immunity test | IEC-61000-4-2 level 4 @8kV |
| Fast transient burst immunity test | IEC61000-4-4 level 3 @Input 1kV; Power supply 2kV |
| Surge (Shock) immunity test | IEC61000-4-5 level 4 @Common mode: 4kV |
| Environment | |
| Working temperature | -10°C ~ +55°C; RH 5% ~ 95% (non-condensation) |
| Storage temperature | -40°C ~ +85°C; RH 5% ~ 95% (non-condensation) |
| Others | |
| Demand record | Maximum monthly demand in the past three months |
| Multi- tariffs ratio | 4 sets rates, 12 segments |
| SOE record | 60 lists, (30 lists DI/DO SOE and 30 lists Alarm SOE) |

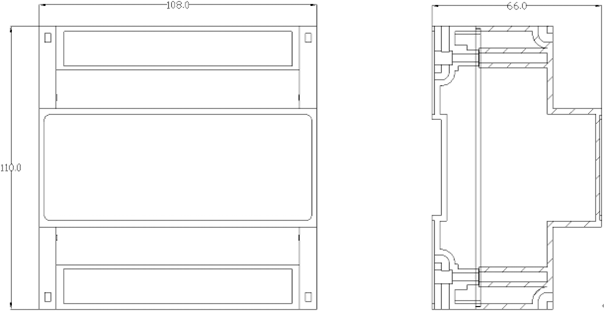

| Dimension | 110mm×108mmx66mm (W*H*D), 35mm Din-rail mounting |
