194E LED Digital Power Meter Features
- Class 0.5 for basic power parameter
- LED screen display 3 lines 4 digits
- 96*96mm panel mounting size
- ITF Technology: galvanic insulation protection inputs outputs
Technology of Electrical Automatic

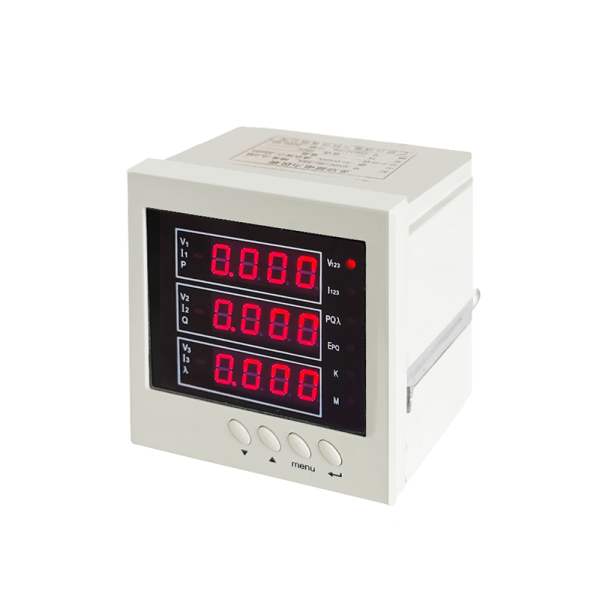

BPM3-96E (194E) LED Digital Power Meter
BPM3-96E (194E) LED Digital Power Meter
194E LED Digital Power Meter, a smart power monitor, is a multifunction, extremely low-cost solution for power line parameter monitors. It’s equipped with 3 lines LED display. Visual display of this 3 phase digital power meter is commonly used data. This 194E LED Digital Power Meter is widely used in the metering of distribution feeders transformers generators capacitor banks and motors.
194E LED Digital Power Meter, a smart power monitor, is a multifunction, extremely low-cost solution for power line parameter monitors. It’s equipped with 3 lines LED display. Visual display of this 3 phase digital power meter is commonly used data. This 194E LED Digital Power Meter is widely used in the metering of distribution feeders transformers generators capacitor banks and motors.
Specifications
| Power Supply | AC / DC 80-265V, 45-65Hz Burned < 10VA |
| Current Measurement | …/ 1A or …/5 A Burned < 0.1W |
| Voltage Measurement | Direct measurement 18~277V ac (L-N) PT secondary …/100Vac Burned < 0.1W |
| Frequency Measurement | 45~65Hz Resolution 0.01Hz |
| Accuracy | U / I / P/ Q – 0.5% Frequency – 0.1% Active Energy – 1.0 class Reactive Energy – 2.0 class |
| Communication Port | RS485 (2/3 wires half duplex) Modbus RTU mode |
| Pulse Outputs | 2 channel Coupler relay |
Selectable Models
